Description

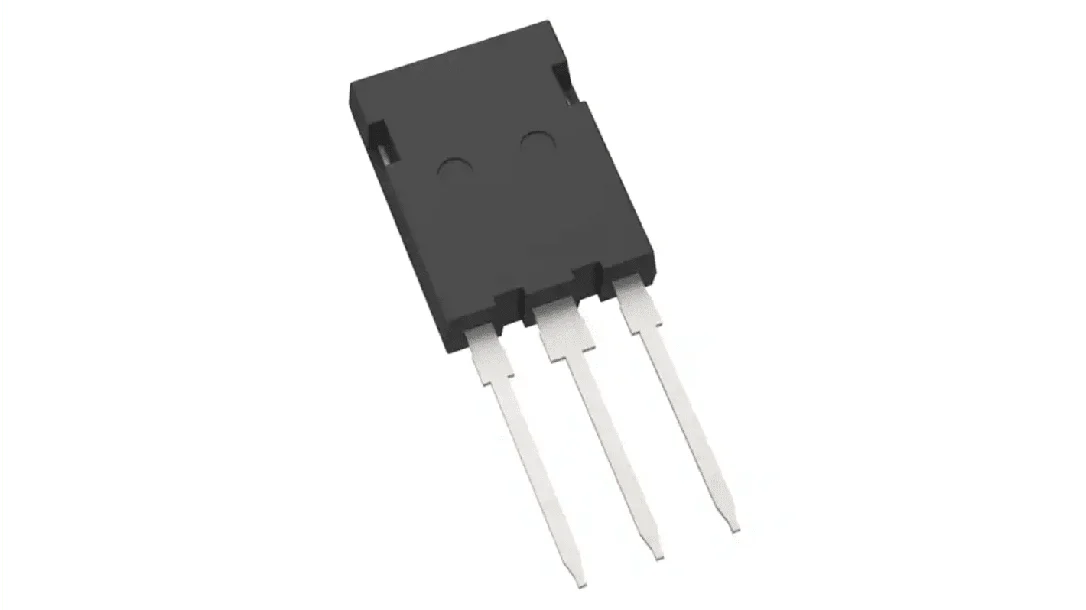

The STMicroelectronics IGBT developed using an advanced proprietary trench gate field stop structure. This device is part of the H series of IGBTs, which represent an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Moreover, a slightly positive VCE(sat) temperature coefficient and very tight parameter distribution result in safer paralleling operation.
Maximum junction temperature TJ = 175 °C
5 s of short-circuit withstand time
Low VCE(sat) = 2.1 V (typ.) @ IC = 50 A
Tight parameter distribution
Positive VCE(sat) temperature coefficient
Low thermal resistance
Very fast recovery antiparallel diode
